K-Sport VW Golf VII 55mm, Multi Link Rear Suspension (AU) coilover sport with upside-down rear suspension

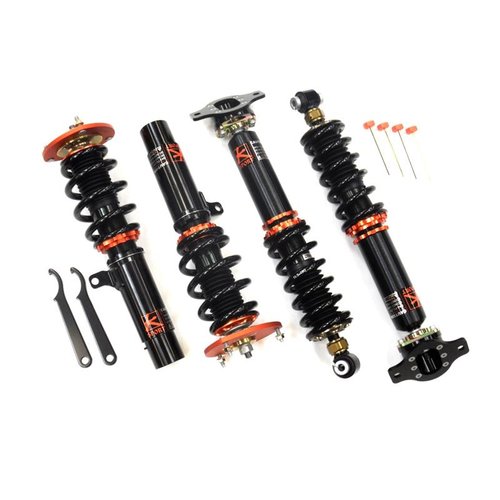

Description
delivery contains:
- 4 suspension strut
- aluminium camber plates including
- 2 hook spanner
- 4 adjustment-knurls for damping action
- all necessary mounting elements
- detailed installation guide
- TÜV-Certificate
For further technical details you visit please our web page
http://www.k-sport-germany.com
| Product Group: | Coilover suspension kits |
| Model: | Golf |
| Year / Type: | [12+] Gen7 (AU) |
| Vehicle Manufacturer: | VW |
| Shipping weight: | 25,00 Kg |
| Features: | 55mm clamp-diameter of damper, multi-link rear suspension, separated strut and spring combination is replaced by a upside-down strut |
| Min. Street Legal Distance Btw. Center Of Wheel To Edge Of Fender (Front): | 320mm |
| Min. Street Legal Distance Btw. Center Of Wheel To Edge Of Fender (Rear): | 320mm |
| Street Legal Lowering Rate (Front): | 40mm-80mm |
| Street Legal Lowering Rate (Rear): | 400mm-80mm |
| Front Top Mounts: | contains pillow ball aluminium top mounts |
| Rear Top Mounts: | contains pillow ball aluminium top mounts |
